Aalborg MPF Multi Fuel
The Aalborg MPF (Marine Para Flow) burner for dual-fuel firing of MDO, HFO, crude oil and fuel gas comes in roof orwall-fired designs. A low emission marine burner variety, Aalborg MPF-LE (LE for low emissions), is also available.
The Aalborg MPF (Marine Para Flow) burner comes in roof or wall-fired designs, capable of handling MDO, HFO, crude oil or fuel gas in single fuel or simultaneous firing operation.

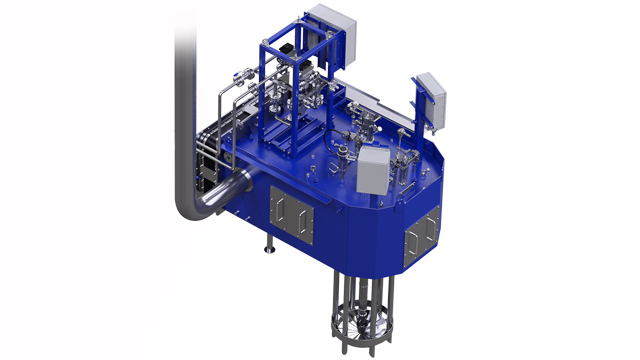

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, gas ring manifold and gas canes, oil gun and air register with all electrical components pre-cabled to the front plate-mounted junction box.In addition, all instrument air users are pre-tubed (SS) to a common manifold and regulator, also mounted on the frontplate.
Application specific designOur burner designs are application and project specific. They are based on proven designs combined with advanced com-bustion tuning via computational analysis.
Capacity range: 5 – 46 MW
Combustion
The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, internal gasring, oil gun and igniter with all electrical components pre-cabled to the front plate mounted SS junction box.
In addition, all instrument air users are pre-tubed (SS) to a common manifold, also mounted on the burner.
Burner features
-
Wide turndown range
-
Low excess air operation
-
Low atomizing steam consumption
-
Retractable oil gun
- Capability of burning all grades of gaseous and liquid fuel oils
-
Output of up to 46 MW
- No/low particulate emissions
-
Ambient or preheated combustion air
-
Retractable air register (multiple burners)

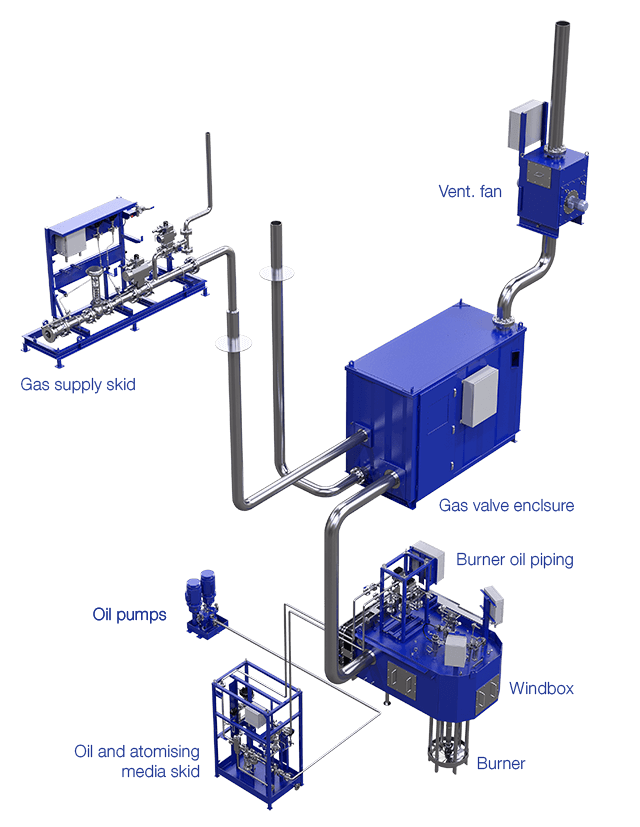

How it works
