Water purification for green hydrogen production

In the green hydrogen production process, clean water is as crucial as renewable electricity when it comes to generating hydrogen gas. But, with clean water fast becoming a scarce resource, can we really call it ‘green’? As a substantial part of the future clean hydrogen demand is dependent on electrolyser production, we have been finding ways to optimize water generation and electrolyser lifetime in a sustainable way. Our goal is to safeguard the development of efficient green hydrogen production with water scarcity issues in mind.

How much water is needed for electrolysis?

Every 10 MW electrolyser capacity requires 50-60 m³/day of clean water. So, how this water is treated is vital if we want to create sustainable green hydrogen. Using salty water with the correct desalination technology, for example, is an ideal way that we can preserve scarce freshwater supplies. With the support of Alfa Laval this solution is both energy efficient and limits any impact on the environment.

Using excess heat to produce pure water

Did you know that 20-40% of the electrolyser capacity is released as excess heat? With the right technology, we can use this heat to generate the right amount of high-quality water, while cooling down the hydrogen production process at the same time.

It all comes down to energy efficiency...

The combined process of reusing excess heat for water generation and electrolyser cooling can increase the overall efficiency of a green hydrogen process by as much as 30%.

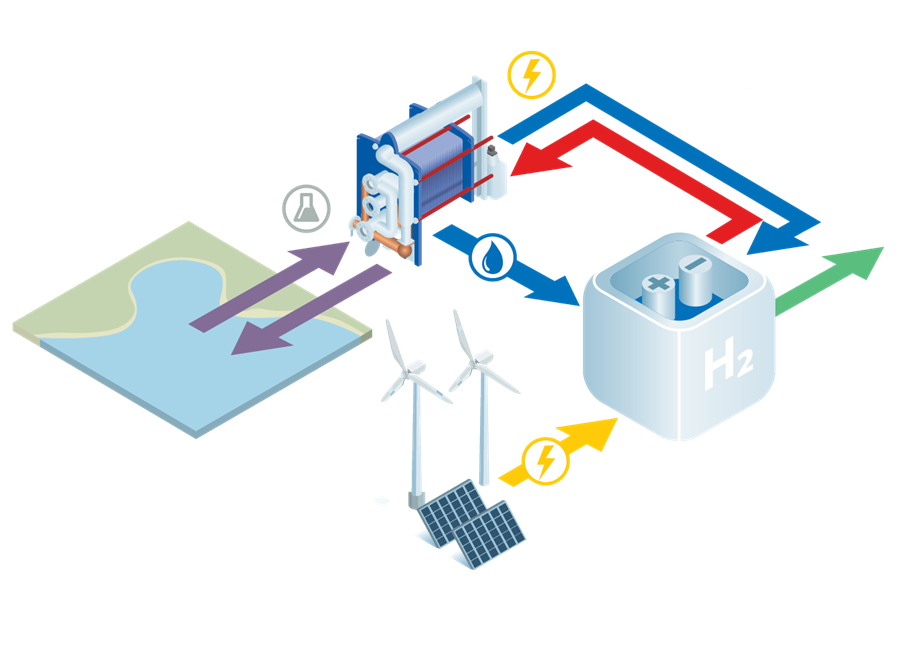

Water purification and thermal desalination with the Alfa Laval HyDuo

Alfa Laval HyDuo combines electrolyser cooling and water purification with:

• Highest water quality
• Smallest footprint
• Minimized chemical consumption
• Minimized electricity consumption
• Low maintenance needs
• Variable production

Watch the video to learn more!

Up to 60 m3/day capacity

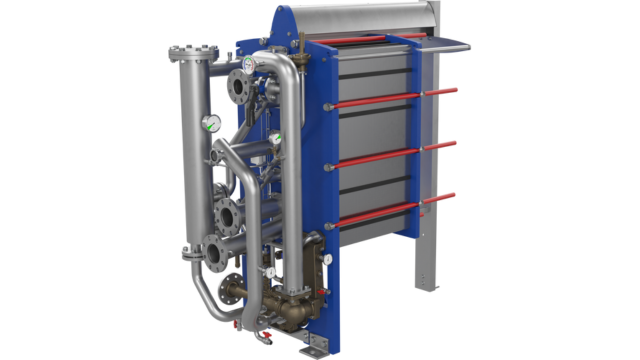

Alfa Lava AQUA freshwater generators convert seawater into high-quality fresh water with an optimized process that uses a single plate pack.

Suitable for electrolyser capacities up to  12 MW per module.

Up to 2000 m3/day capacity

With the Alfa Laval Multi-effect plate evaporator (MEP), high purity fresh water is produced in harsh environments where variable external conditions occur.

Suitable for electrolyser capacities up to 400 MW per module.

What is the difference between freshwater generator and reverse osmosis?

Compared to traditional reverse osmosis processes, a freshwater generator allows you to cool down the electrolyser and produce the right water quality in one step. This reduces the need for additional cooling, with a cooling tower or similar solution for example, and minimizes overall power consumption.

Competing solutions that use sea water for cooling purposes also often require an extra pump which increases the energy consumption of the entire system. Using Alfa Laval equipment that accomplishes two parts of the same process takes this out of the picture, saving costs in the long term and on the initial investment.
